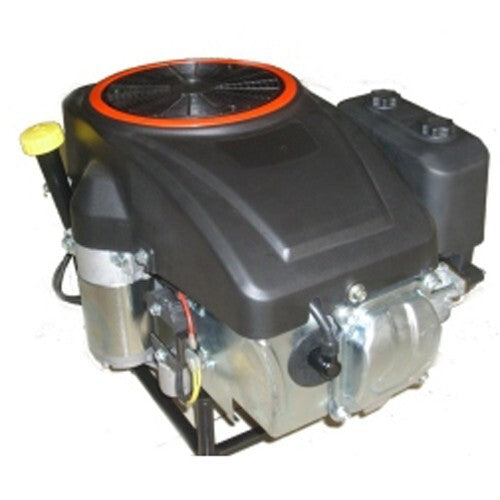

Millers Falls 16HP Vertical Shaft Engine QPVS16ES

The Millers Falls 16HP vertical shaft engine QPVS16ES is an air-cooled, OHV 4-stroke single-cylinder engine designed for demanding applications requiring reliable power output.

• Electric start – compatible with existing 12 volt battery systems
• Vertical shaft orientation – suitable for direct coupling to pumps and equipment

• Model: QPVS16ES
• Engine type: Air-cooled, OHV, 4-stroke, single cylinder
• Displacement: 452cc
• Bore & stroke: 92 x 68mm
• Maximum power output: 16 HP at 3600 RPM
• Maximum torque: 25 Nm at 2600 RPM
• Compression ratio: 8.8:1
• Start mode: Electric start
• Shaft diameter: 1" (25.4mm)
• Overall dimensions: 415mm (L) x 442mm (W) x 315mm (H) excluding shaft
• Package dimensions: 72cm x 55cm x 56cm
• Package weight: 45kg
