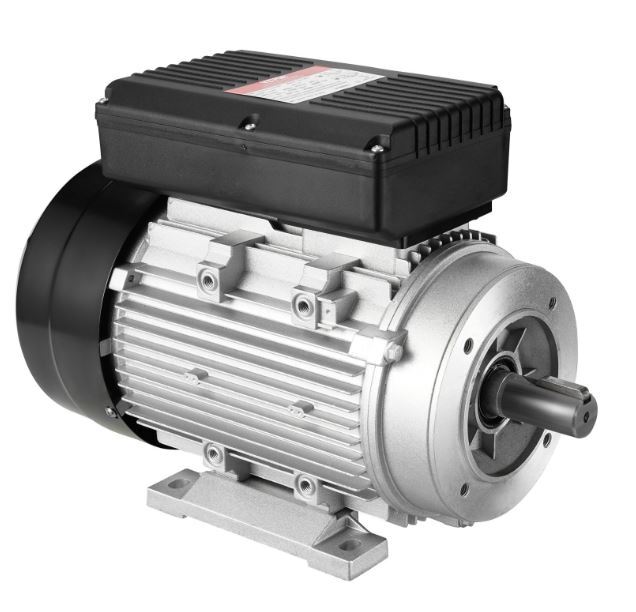

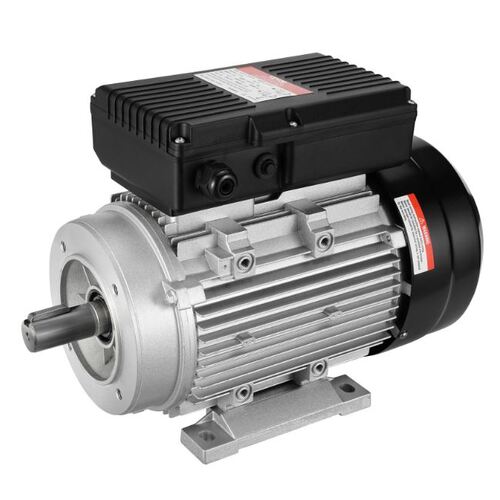

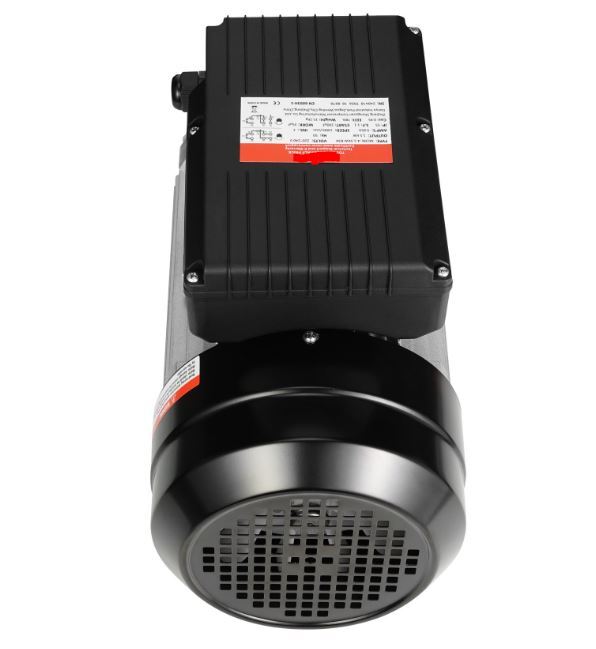

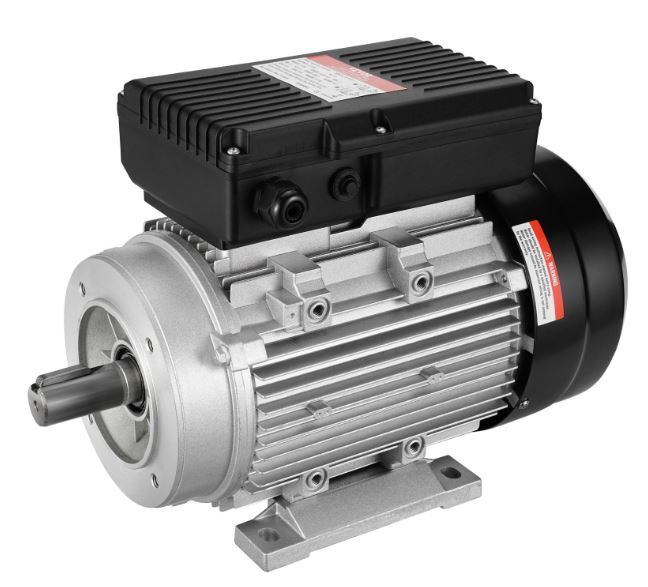

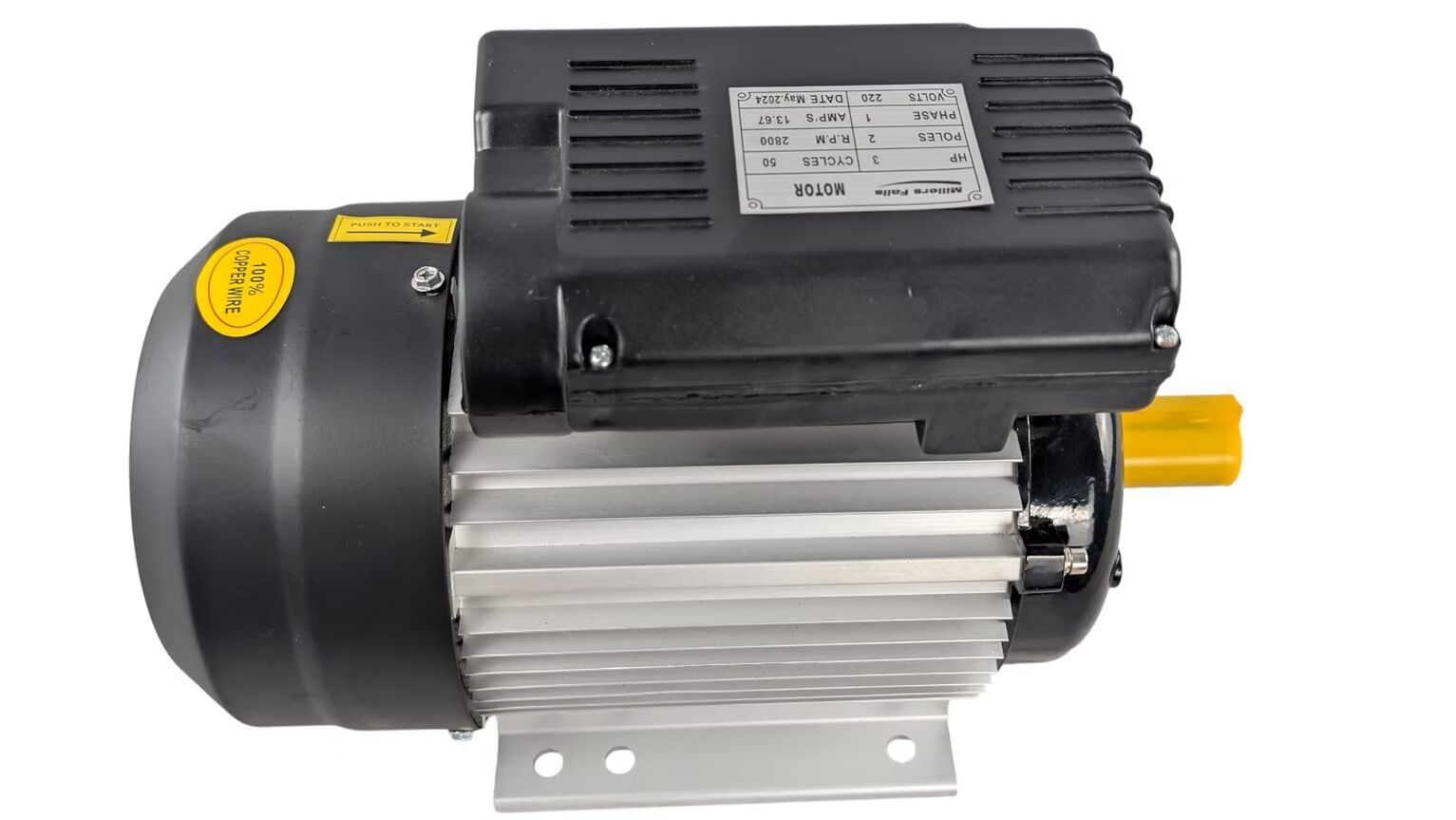

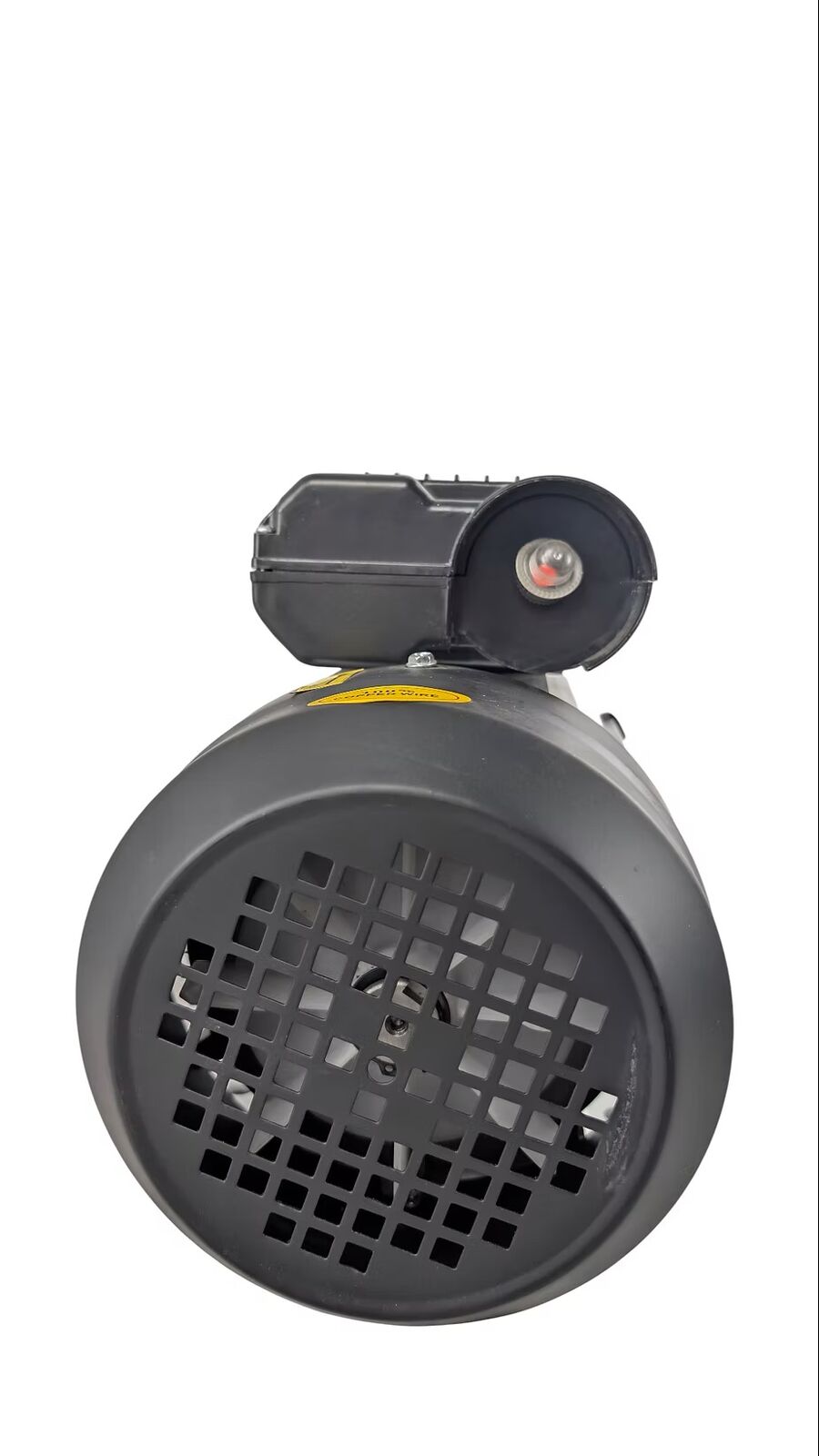

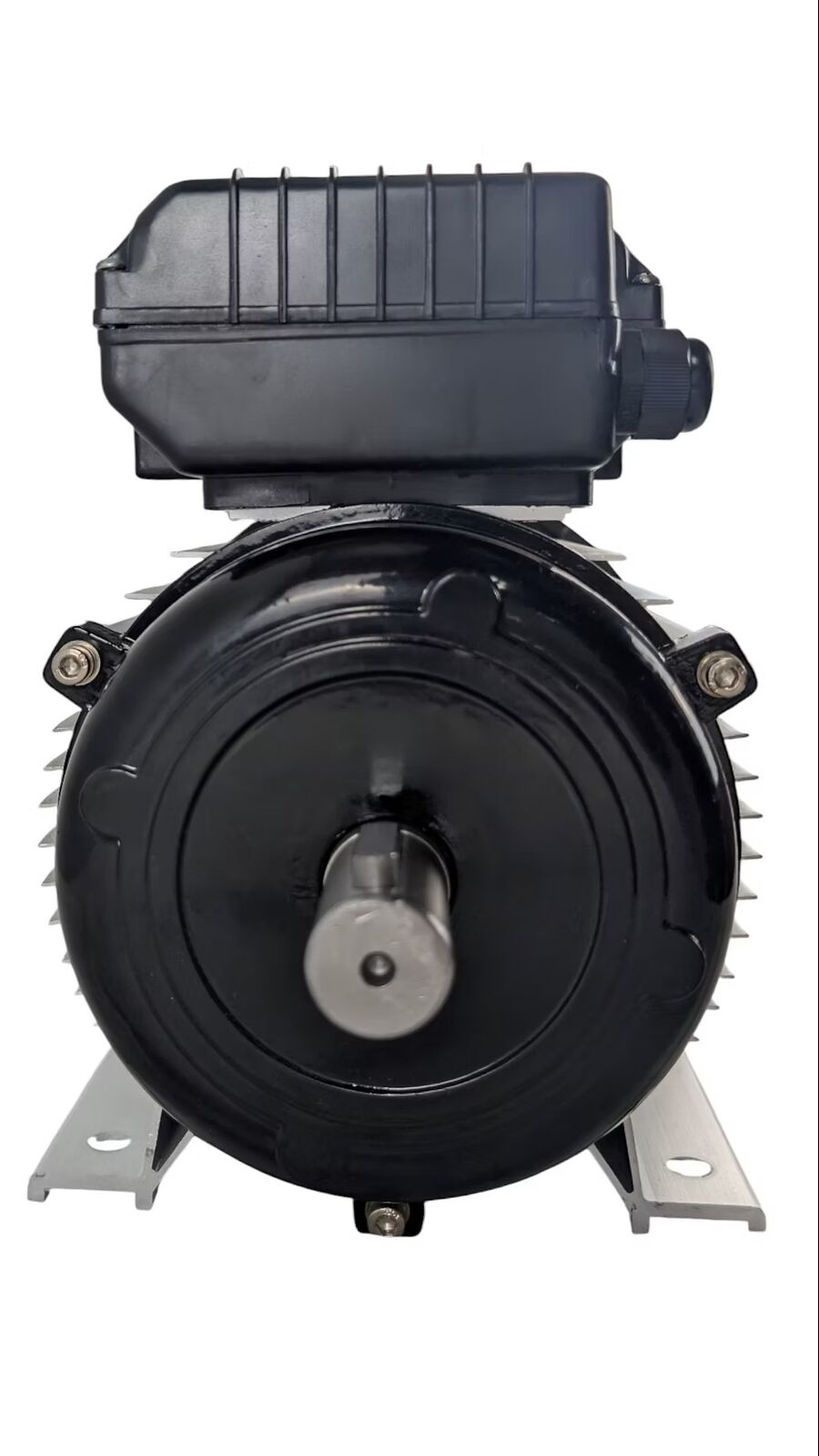

Millers Falls 3HP 2.2kW 240V Electric Motor 24mm Key Shaft

Model: ACBM3C

The Millers Falls electric motor is a powerful high performance 2.2KW 3HP motor with a full load current of 9.2 A. It operates on AC 240V 50Hz and has a high-speed of 2890 RPM. The motor has a sturdy frame type of 90L, B3 frame with a 24mm keyed shaft. The shaft length is 50mm, and the keyway size is 8mm.

One notable feature of this motor is its dual rotation direction, offering reversible CW/CCW rotation for easy wiring installation and versatile connections. The motor is built with a heavy-duty rolled steel shell, ensuring durability and resistance to rust and corrosion.

This Millers Falls motor is designed for general purpose applications and is suitable for air compressors, water pumps, agricultural machinery, and general equipment. It is also ideal for DIY projects and repair replacements, providing powerful and versatile functionality.

The Millers Falls Copper Wound series motors combine superior electrical characteristics and a high-quality design, along with the strength of cast iron construction, making it ideal for various industrial applications.

Millers Falls is a reputable supplier known for producing high-quality, efficient, and reliable electric motors. These heavy-duty air compressor motors are manufactured to raise the standard in quality and performance.

Features:

  • Copper Windings
  • Drip proof fan cooled IP22
  • Dynamically balanced rotor
  • Bi-directional rotation
  • Pressed metal fan cover
  • Low full load currents
  • Thermal overload protection
  • High quality capacitors
  • IP55 Protection Rating
  • Capacitor start/Capacitor Run
  • High quality bearings, grease packed for life
  • Low noise and vibration
  • Cast iron construction with top mounted terminal box
  • Class F insulation
  • Totally Enclosed Fan Cooled
  • Durable - High quality components

Specifications:

  • Voltage: Single phase: 240v
  • Speed: 2850 RPM 2 Pole
  • Power: 2.2kw/3HP
  • Shaft size: 24mm
  • Distance between holes 125mm and 140mm


(ACBM3C)

SKU ACBM3C
Brand Millers Falls
Shipping Weight 20.0000kg
Shipping Width 0.400m
Shipping Height 0.400m
Shipping Length 0.300m
Shipping Cubic 0.048000000m3
