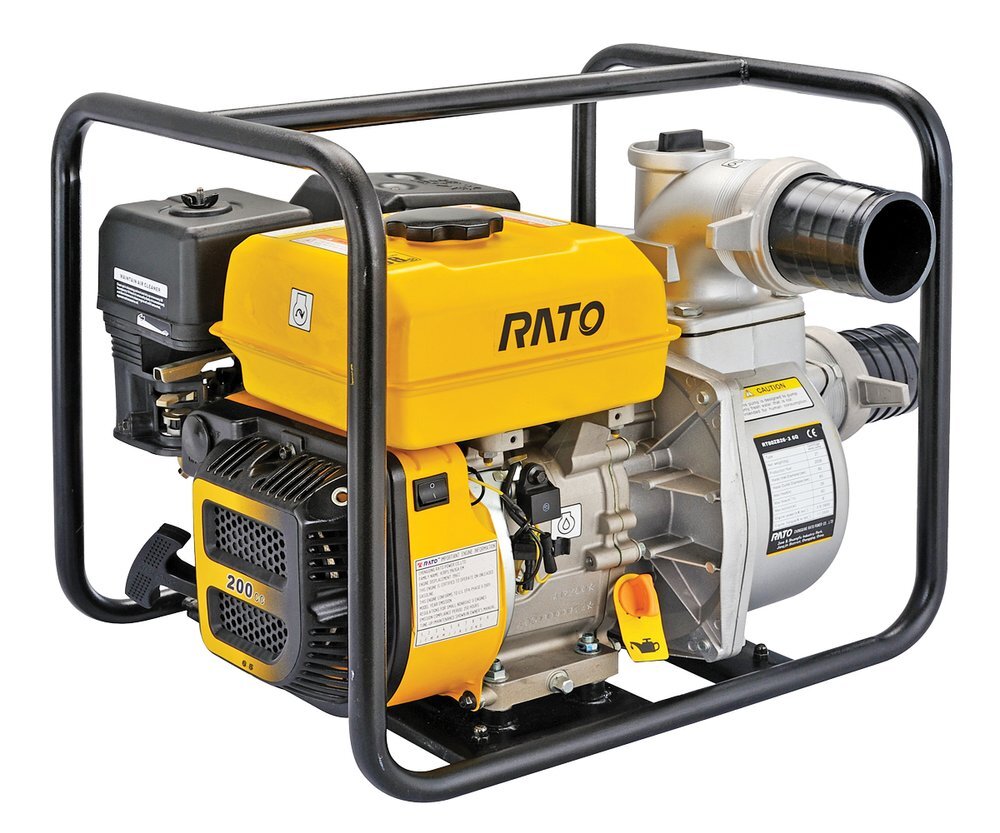

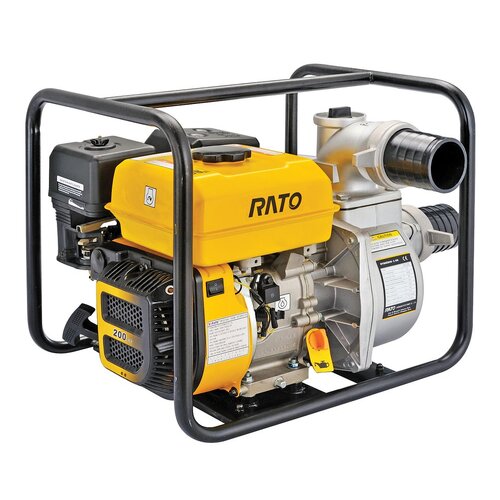

Rato 3" Petrol Water Transfer Pump  RT80ZB28-3.6Q

The RATO RT80ZB28-3.6Q clean water pump features a unique design and is manufactured for general water pumping applications. It has a tough aluminium housing and a corrosion resistant e-coated frame making it perfect for any job out in the Australian weather. If you’re looking to move large volumes of water quickly, then this is the pump for you!

  • 7hp 4 stroke OHV engine
  • Delivers 1000L/min
  • Rugged full frame protection with anti-vibration mounts
  • Cast iron volute and impeller with a silicon carbide seal
  • Complete accessories available
  • Scroll case is located by positioning pin for more reliable use
  • Anti-winding ring, so clear water pump has the function of dust water pump
  • Separated shock pad design for the support base, in order to minimize the shock

Spec

  • Engine: R210 / 7hp
  • Engine type: Single cylinder, 4 stroke (OHV)
  • Starting system: Recoil start
  • Bore x Stroke: 70 x 55mm
  • Displacement: 212ml
  • Compression ratio: 9 : 1
  • Net power: 4.4kw / 3600rpm
  • Fuel consumption: ≤395 (g/kw-h)
  • Net torque: 12N.m / 2500rpm
  • Pump set: 3" clean pump
  • Suction port diameter: 75mm (3")
  • Discharge port diameter: 75mm (3")
  • Suction head lift: 8m
  • Total head lift: 28m
  • Discharge capacity: 60m3/h / 1000 litres per minute
  • Dimensions (L x W x H mm): 500 x 395 x 445
  • Net weight: 25.5kg

(RT80ZB28-3.6Q)

SKU RT80ZB28-3.6Q
Brand Rato
Shipping Weight 28.0000kg
Shipping Width 0.520m
Shipping Height 0.480m
Shipping Length 0.420m
Shipping Cubic 0.104832000m3
