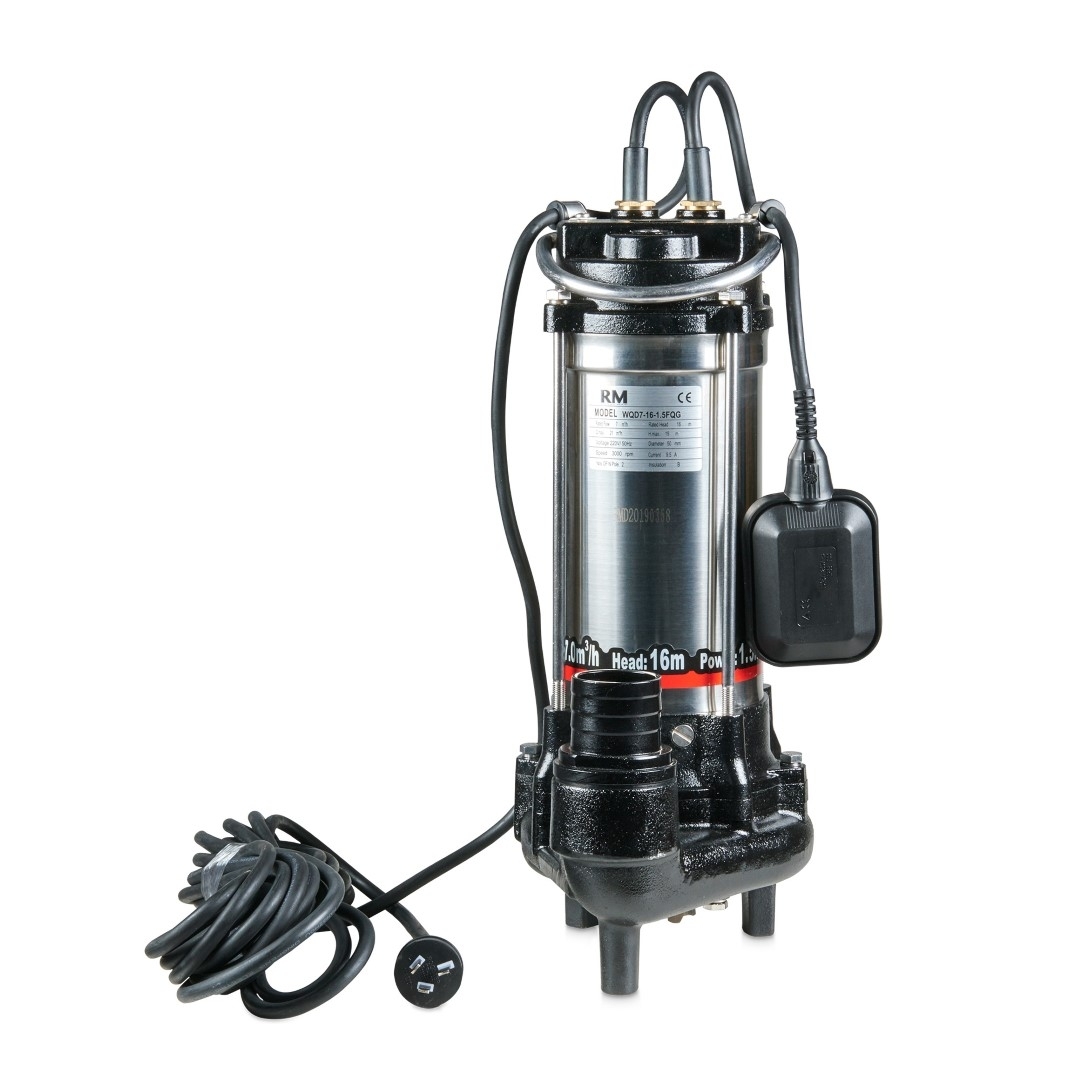

Rural Max Submersible Macerator Pump 2HP WQD7-16-1.5QGF

Model: WQD7-16-1.5QGF

  • Rated Flow: 117L/min (7m3/H)
  • Rated Head: 16M
  • Q Max: 350L/min (21m3/H)
  • H Max: 19M
  • Item Height: 44cm
  • Item Depth: 24cm
  • Item Width: 17cm

APPLICATION AREA
For usage of industry, agriculture, mine, building construction, environmental protection. Fit for carrying slurry, mortar, daily sanitary wastewater, and sewage containing flocks, papers, mud and sand  and other solid particles. Also fit for dredging.

OPERATING LIMITS

  • Trans medium's PH: 4-10
  • Fluid temperature limit: <40℃
  • Max ambient temperature: <40℃
  • Operating depth: 5m

STRUCTURAL CHARACTERISTICS

  • Insulation Class: B
  • Protection Class: IP68

MATERIAL

  • Pump body: Stainless steel(AISI304) / Cast iron
  • Impeller: Cast iron
  • Motor shaft: Stainless steel
  • Mechanical seal: Ceramic-Graphite
  • Suction strainer: Cast iron

(RM-WQD7-16-1.5QGF)

SKU RM-WQD7-16-1.5QGF
Barcode # 9312737015310
Brand Rural Max
Shipping Weight 28.0000kg
Shipping Width 0.560m
Shipping Height 0.230m
Shipping Length 0.290m
