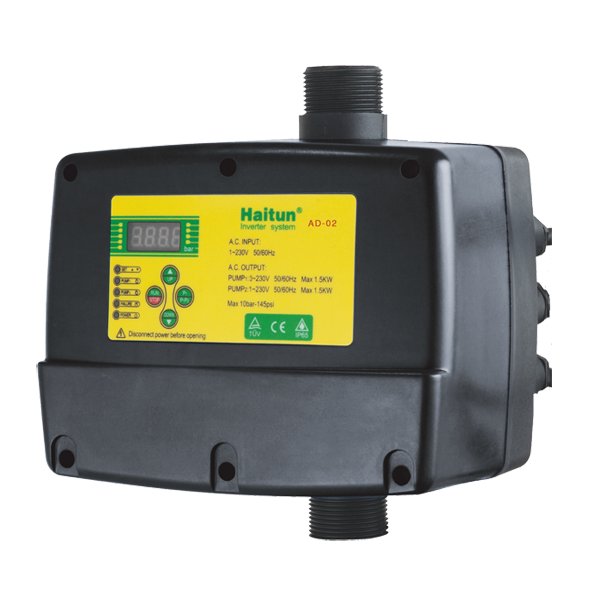

Rural Max 1500W Variable Speed Inverter Pump Controller Single Phase

The Haitun 1500W Inverter Pump Controller is a single-phase variable speed pump controller designed for residential and agricultural water supply applications.

• Variable speed control – adjusts pump output to match demand and reduce energy consumption
• Wide voltage tolerance – operates safely across 160V–250V input range
• Pressure regulation – maintains consistent water pressure between 1–9 bar

• Model: AD-02M
• Input power: Single phase AC 220V
• Allowable voltage range: 160V–250V
• Output voltage: 1–220V
• Main pump type: Single phase
• Auxiliary pump type: Single phase
• Maximum pump power: 1500W
• Joint screw: G1.25" male
• Maximum allowable pressure: 10 bar
• Pressure setting range: 1–9 bar
• System configuration requirement: Must add an inflatable pressure tank (larger than 4L) with inflation pressure at 50–80% of the setting pressure
• Ambient temperature: 0–40°C
• Liquid requirement: Clean water, 0–50°C
