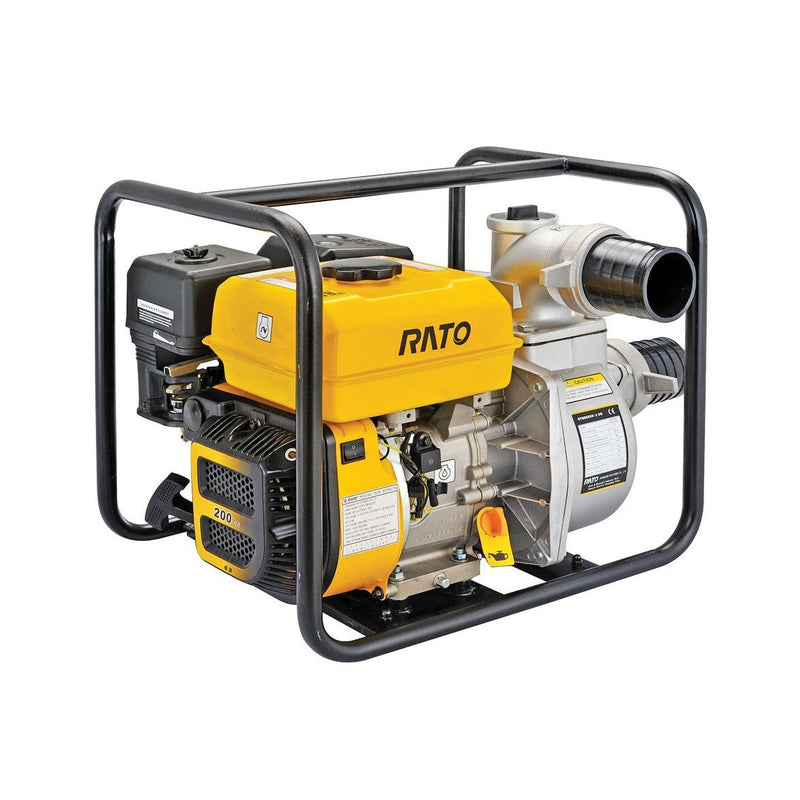

Rato 3" Petrol Water Transfer Pump RT80ZB28-3.6Q

The Rato RT80ZB28-3.6Q is a clean water pump designed for general water pumping applications, featuring a tough aluminium housing and corrosion-resistant e-coated frame suitable for Australian conditions.

• Rugged full frame protection – anti-vibration mounts minimise shock and vibration
• Cast iron volute and impeller – durable construction with silicon carbide seal
• Anti-winding ring – enables the pump to handle both clear and dusty water
• Separated shock pad design – reduces impact on the support base
• Scroll case positioning pin – ensures more reliable operation

• Engine: R210, 7hp single cylinder, 4 stroke OHV
• Starting system: Recoil start
• Bore x Stroke: 70 x 55mm
• Displacement: 212ml
• Compression ratio: 9:1
• Net power: 4.4kW at 3600 RPM
• Fuel consumption: ≤395 g/kW-h
• Net torque: 12N·m at 2500 RPM
• Pump type: 3" clean pump
• Suction port diameter: 75mm (3")
• Discharge port diameter: 75mm (3")
• Suction head lift: 8m
• Total head lift: 28m
• Discharge capacity: 60m³/h (1000 litres per minute)
• Dimensions (L x W x H): 500 x 395 x 445mm
• Net weight: 25.5kg
