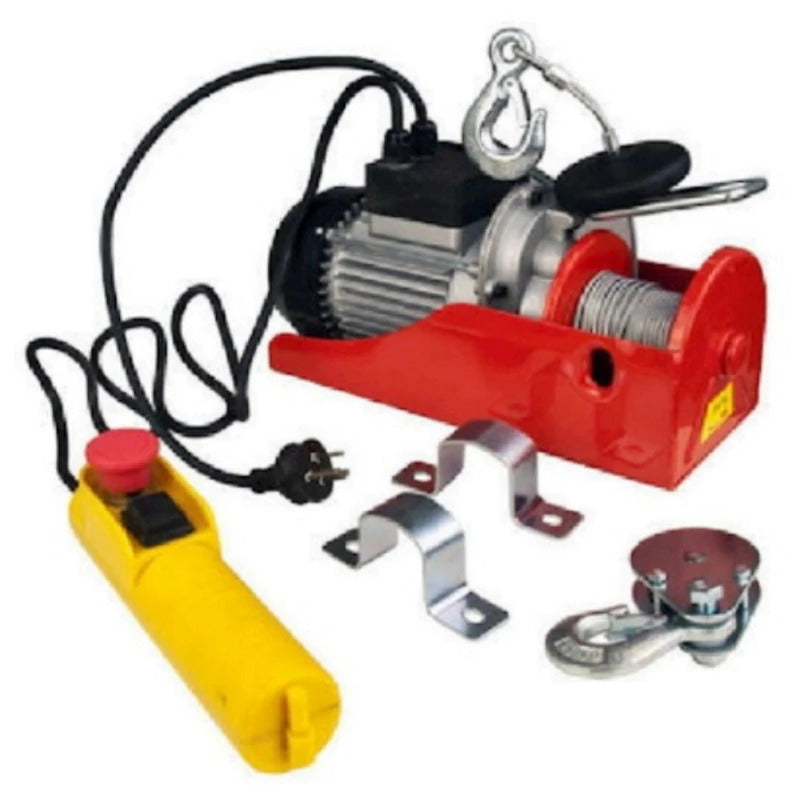

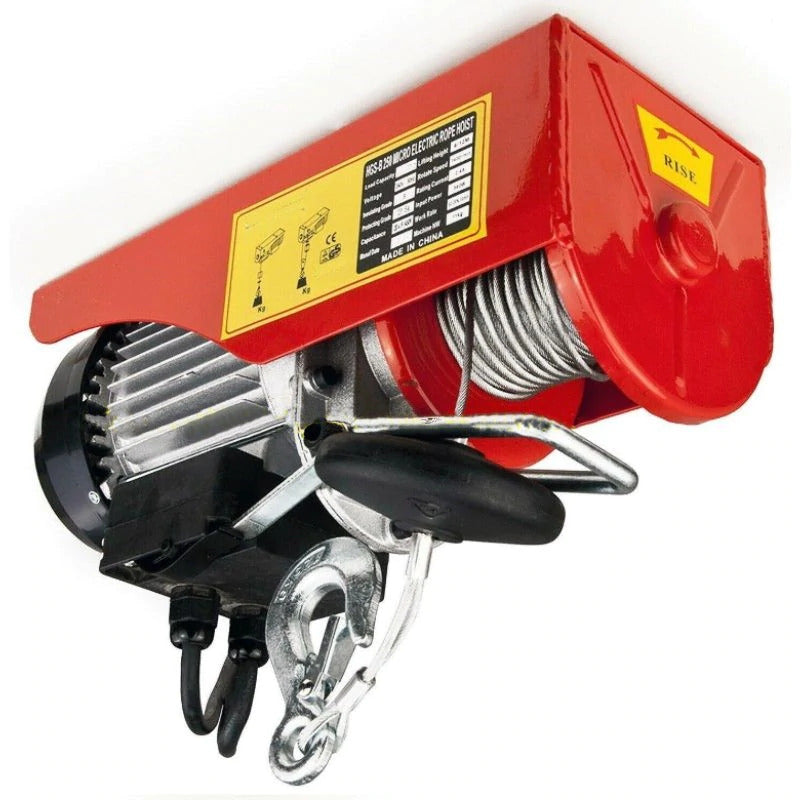

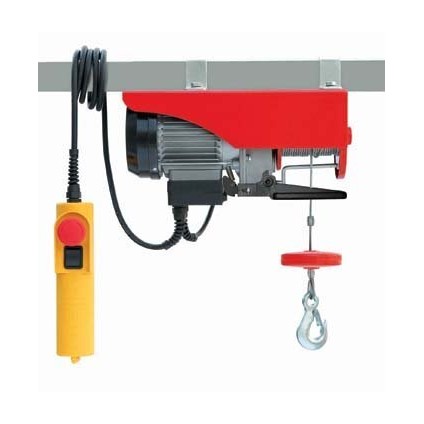

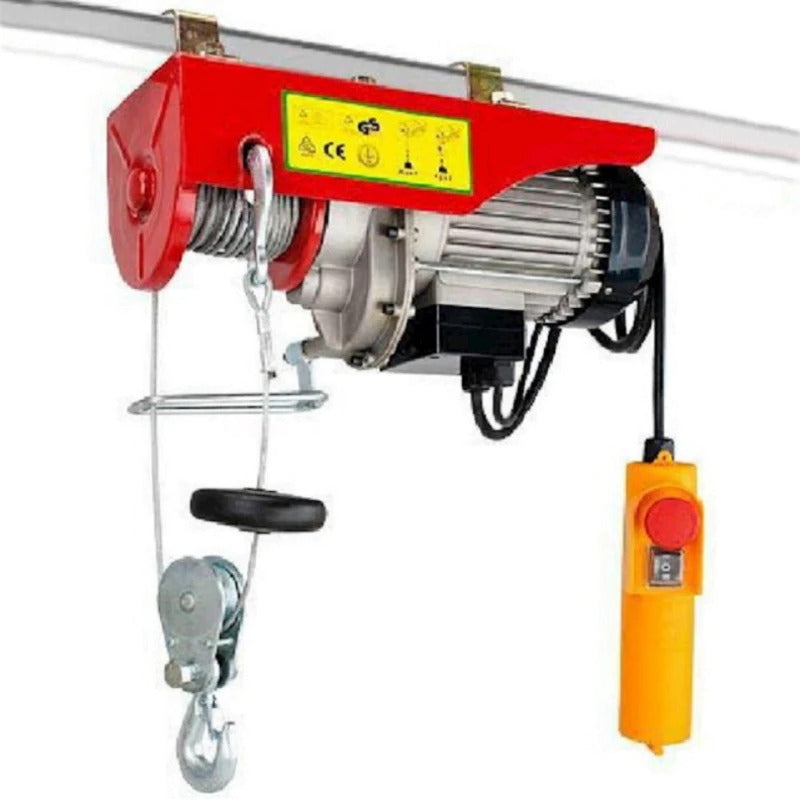

TWM 1200kg Electric Hoist WHPA1200

The TWM WHPA1200 is a 1200kg electric cable hoist designed for lifting and lowering loads with dual operating modes for flexible capacity and height requirements.

• Dual cable mode – switch between single cable (600kg capacity, 11m height) and double cable (1200kg capacity, 5.5m height) configurations
• Variable lifting speed – adjustable from 10m/min in single mode to 5m/min in double mode for controlled load handling
• Tilting table – 0–45 degree adjustment for angled load positioning

• Type: Electric cable hoist
• Motor: 240V 1300W single phase
• Load capacity (single cable mode): 600kg
• Load capacity (double cable mode): 1200kg
• Lifting height (single cable mode): 11m
• Lifting height (double cable mode): 5.5m
• Lifting speed (single cable mode): 10m/min
• Lifting speed (double cable mode): 5m/min
• Cable length: 12m
• Cable diameter: 6.2mm
• Table tilt range: 0–45 degrees
