TWM 800kg Electric Hoist WHPA800

The TWM WHPA800 is a 240V electric cable hoist with dual-mode operation, capable of lifting up to 800kg in double cable mode or 400kg in single cable mode.

• Dual-cable configuration – enables flexible load capacity options from 400kg to 800kg depending on application
• Extended lifting height – reaches up to 11m in single cable mode for versatile positioning
• 12m cable length – provides adequate reach for most lifting tasks

• Model: WHPA800
• Type: Electric cable hoist
• Motor: 240V 1300W single phase
• Load capacity (single cable mode): 400kg
• Load capacity (double cable mode): 800kg
• Lifting height (single cable mode): 11m
• Lifting height (double cable mode): 5.5m
• Lifting speed (single cable mode): 10m/min
• Lifting speed (double cable mode): 5m/min

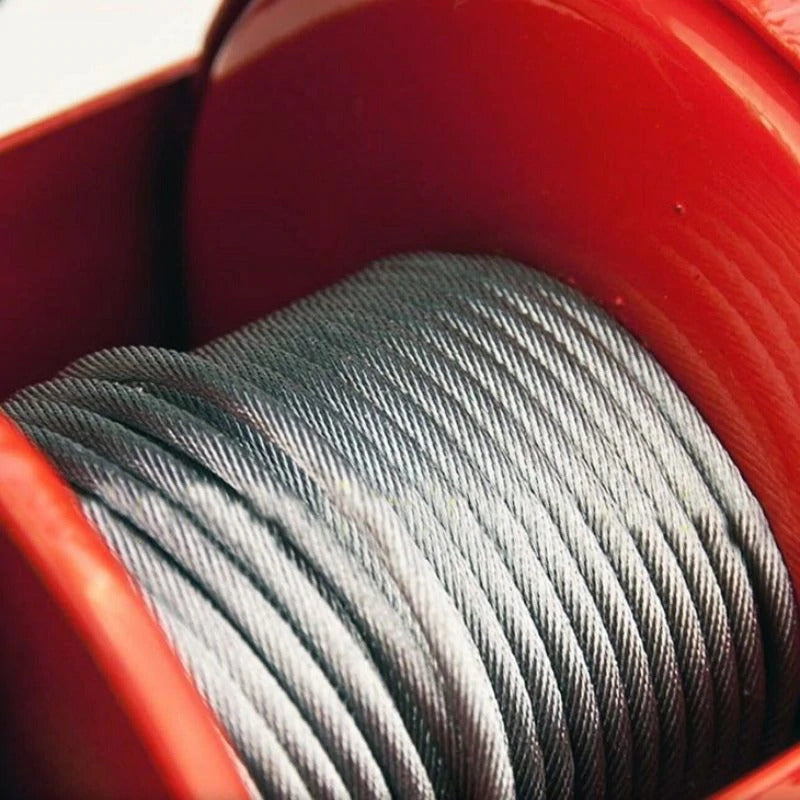

• Cable length: 12m
• Cable diameter: 5.1mm
• Cable resistance: ≥800kg
• Service rating: S3 20% – 10min
• Table tilt range: 0–45 degrees
• Standard approval: AS1418.2: 1997
