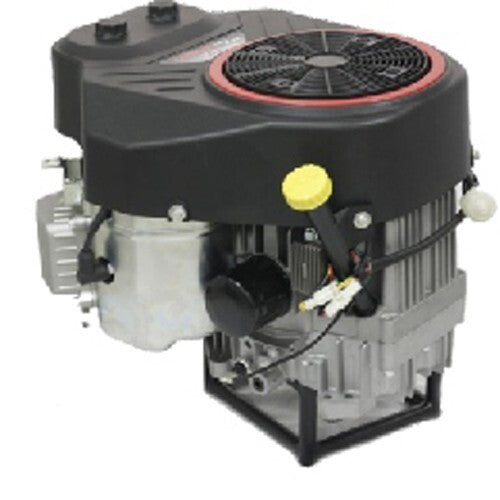

Millers Falls 13Hp Vertical Shaft Engine QPVS13ES

The Millers Falls 13Hp Vertical Shaft Engine QPVS13ES is an air-cooled, 4-stroke engine designed for equipment requiring vertical shaft power transmission.

• Transistorized magneto ignition – reliable contactless starting with no maintenance
• Electric start optional – convenient engine activation
• Centrifugal mechanical governor – maintains consistent engine speed under load

• Model: QPVS13ES
• Type: Air-cooled, 4-stroke, OHV, vertical shaft
• Bore x Stroke: 88 x 56mm
• Displacement: 340cc
• Compression ratio: 9:1
• Net torque: 21N.m at 2500rpm
• PTO shaft rotation: Counterclockwise (from PTO shaft side)
• Ignition system: Transistorized magneto ignition
• Starting system: Electric start optional
• Carburetor: Horizontal type butterfly valve
• Lubrication system: Splash
• Oil capacity: 1.1L
